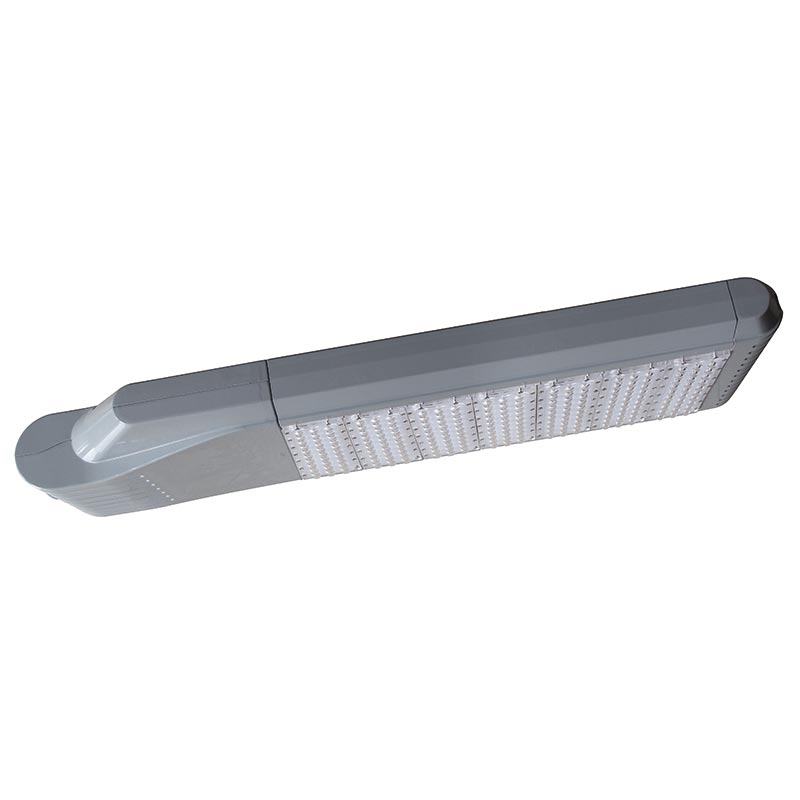

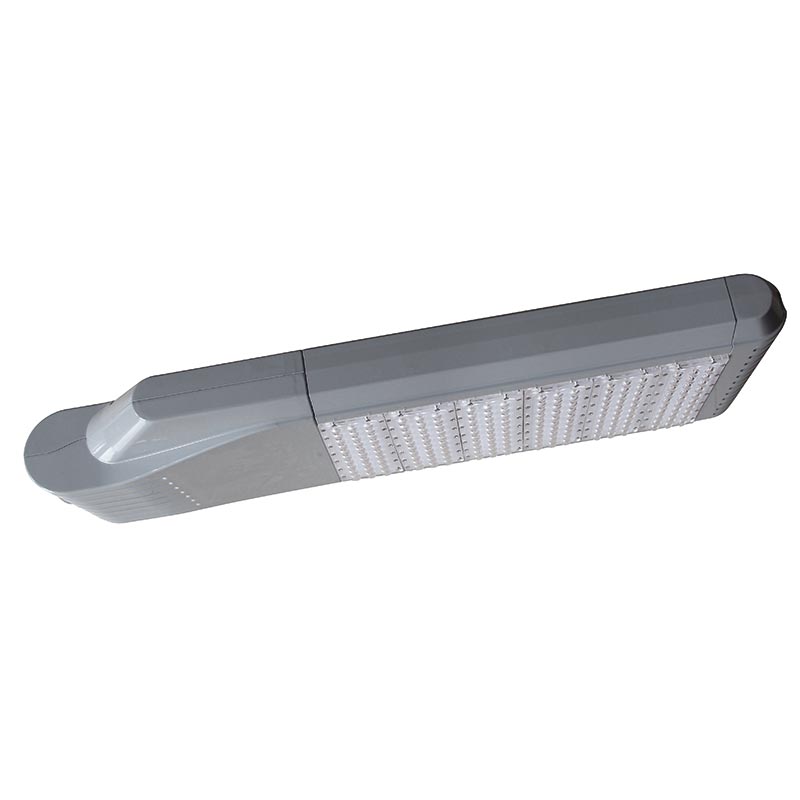

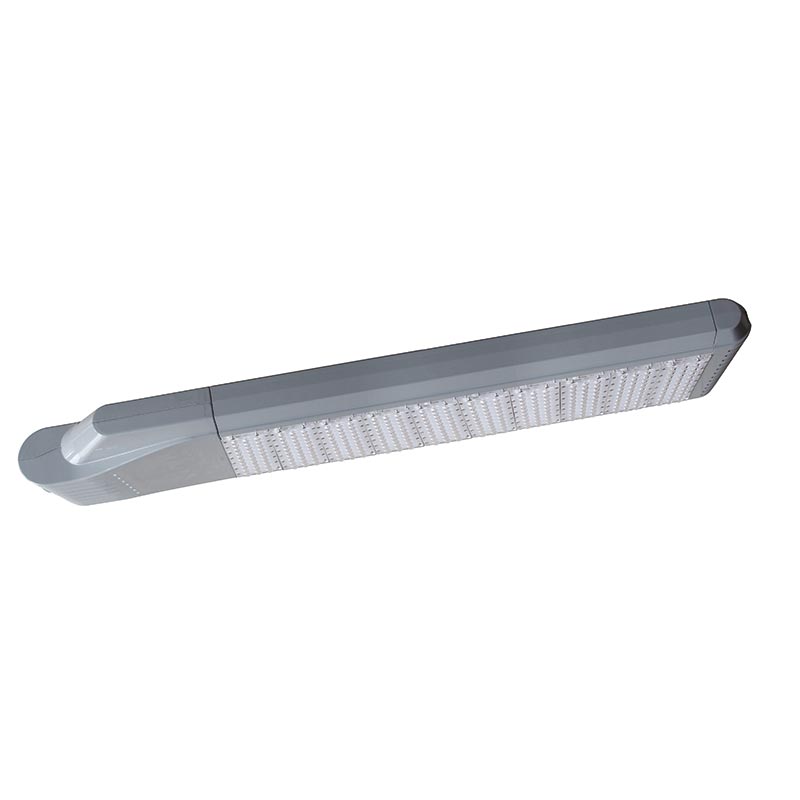

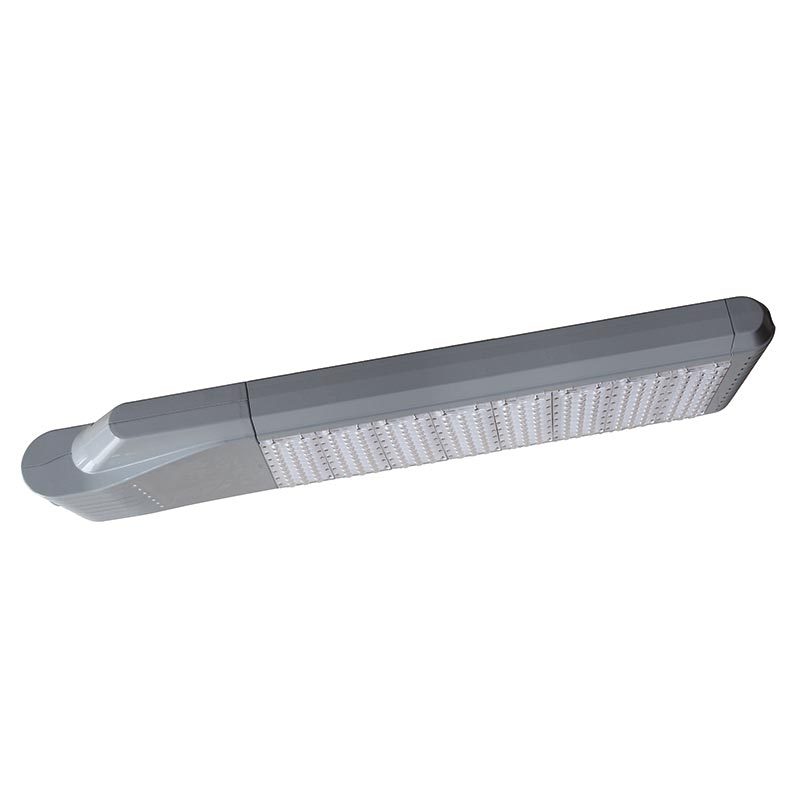

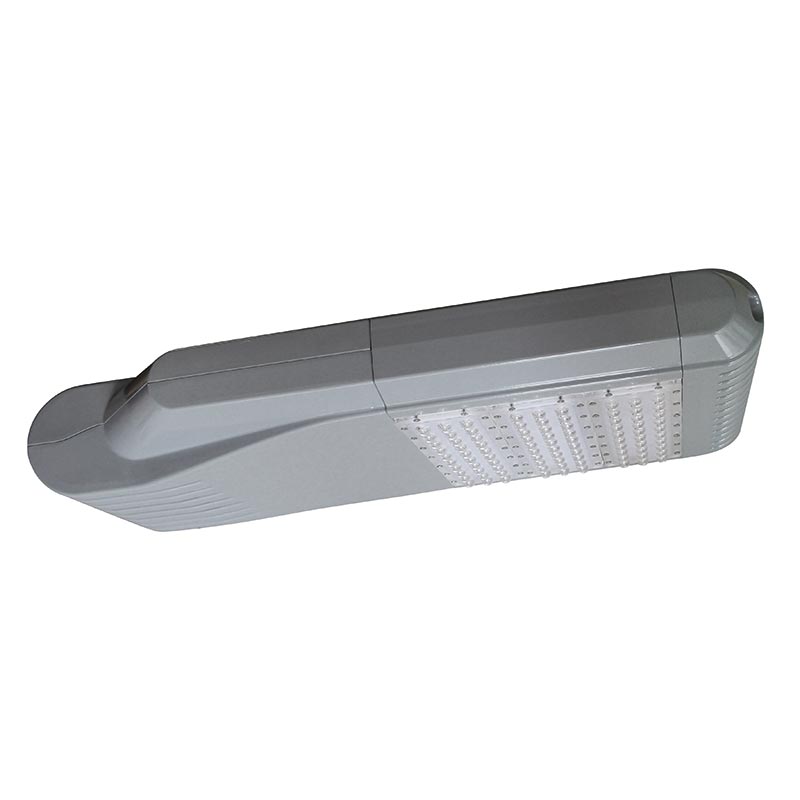

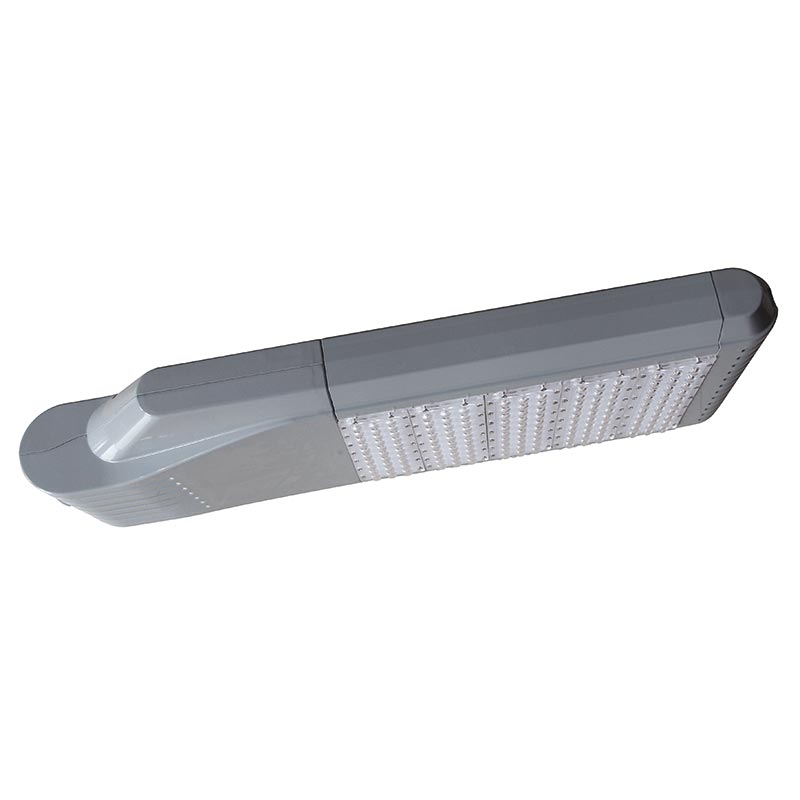

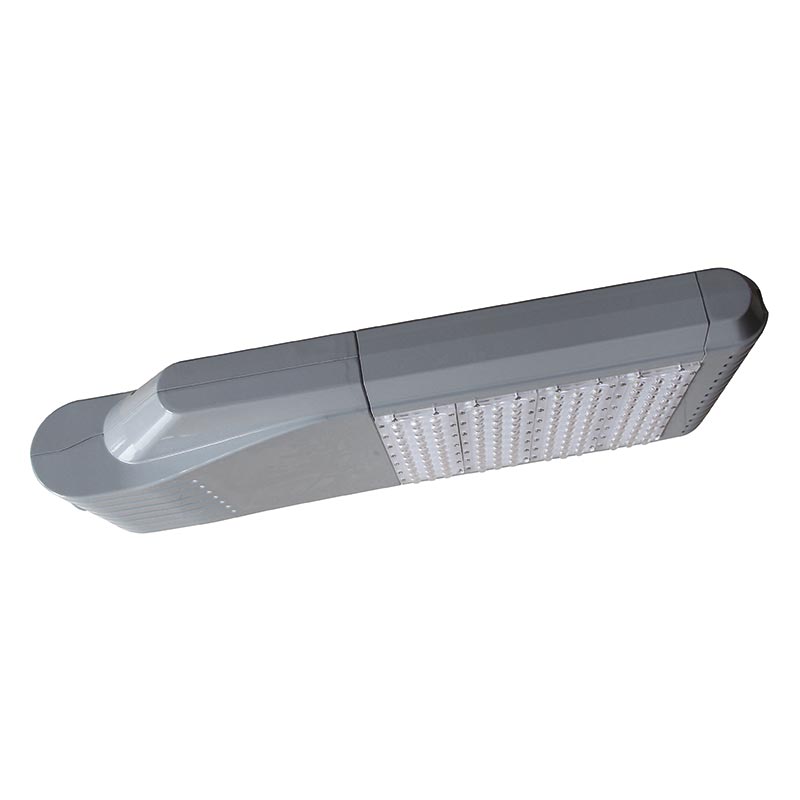

SM-06 LED Street Light

Product Description

SM-06 LED Street light is better than normal LED lights for its large number light sources. Which can be different with specific model and enables different light intensity. Also, with the help of its advanced chip, the speed of it to emit light would be much better than other LED street lights in the market. And the color rendering index of SM-05 LED Street light is higher than many other lights, helping drivers to identify the different signs correctly and reduce the incidence of traffic accidents effectively. What’s more, SM-05 LED Street light is competitive for its outstanding ability against harsh working environments such as heavy rain, low temperature, and so on.

Benefits of LED Street light:
• The original high efficiency Lumileds LED chip, single light damage will not affect the whole light.
• The longitudinal uniformity 0.8, more comfortable and safety for driver.
• Water proof of IP65, avoid water vapor or corrosive gas erosion of chips and circuit boards.
• AC85-305V, suitable for many countries.
• Competitive for its outstanding working ability against harsh environments such as heavy rain, low temperature, and so on.


Detailed Parameters

Model SM-06 LED
Size 30W :480*355*155mm(L*W*H), 8.7KG
60W :560*355*155 mm(L*W*H) 9.7KG
90W :640*355*155 mm(L*W*H) 10.7KG
120W :720*355*155 mm(L*W*H) 11.7KG
150W :800*355*155 mm(L*W*H) 12.7KG
180W :880*355*155mm(L*W*H) 13.7KG
210W :960*355*155mm(L*W*H) 14.7KG
240W :1040*355*155mm(L*W*H) 15.7KG
270W :1120*355*155mm(L*W*H) 16.7KG
300W :1200*355*155mm(L*W*H) 17.7KG
Max Power 30W/60W/90W/120W/150W/180W/210W/240W/270W/300W
Input Voltage AC90V-305V, 50hz-60hz, DC12/24V
Driver Brand PHILIP /MEANWELL/ZHIHE and others
Chip Brand PHILIPS/BRIDGELUX/CREE and others
Light Luminous Efficiency >110LM/W
Uniformity >0.8
Average illumination 6m>25LUX, 8m>20LUX
LED Luminous Efficiency >90%
Color Temperature 3000-6500K
CRI Ra>75
Power Efficiency >90%
Power Factor >0.95
Working Environment ﹣60℃-70℃
Material die-casting aluminum
IP Rating IP65
Working Life >50000H
Warranty 3-5 Years

Product Details

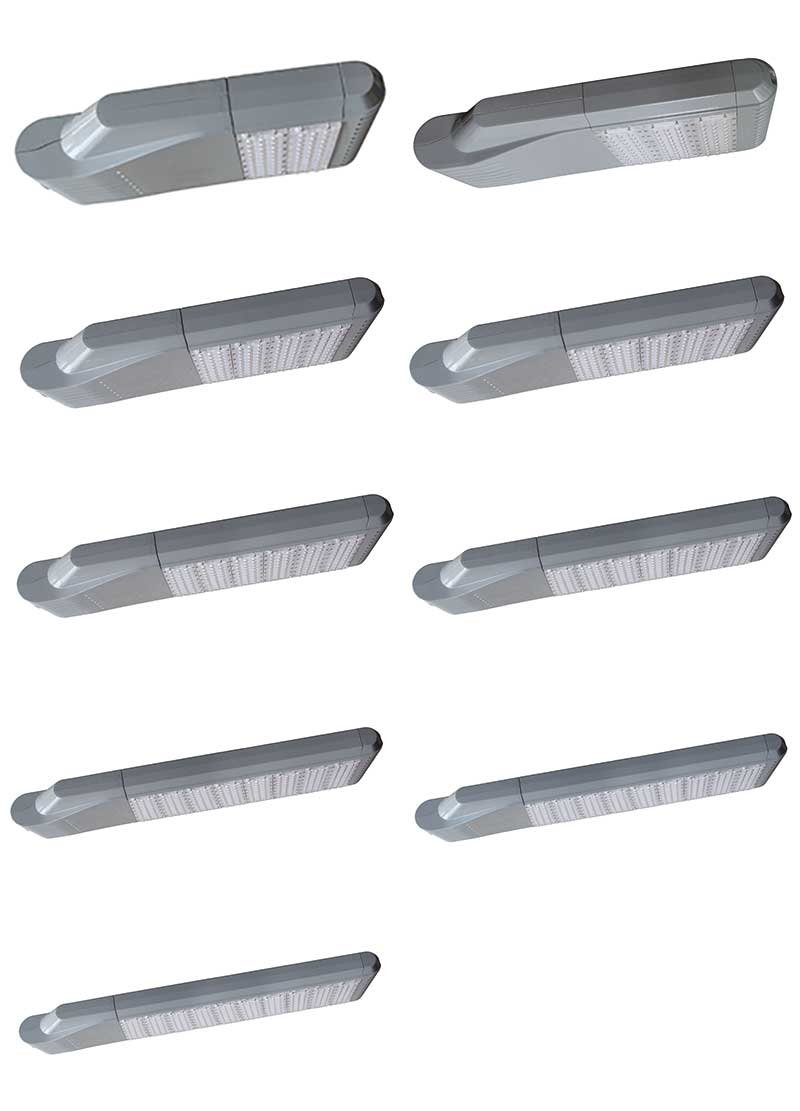

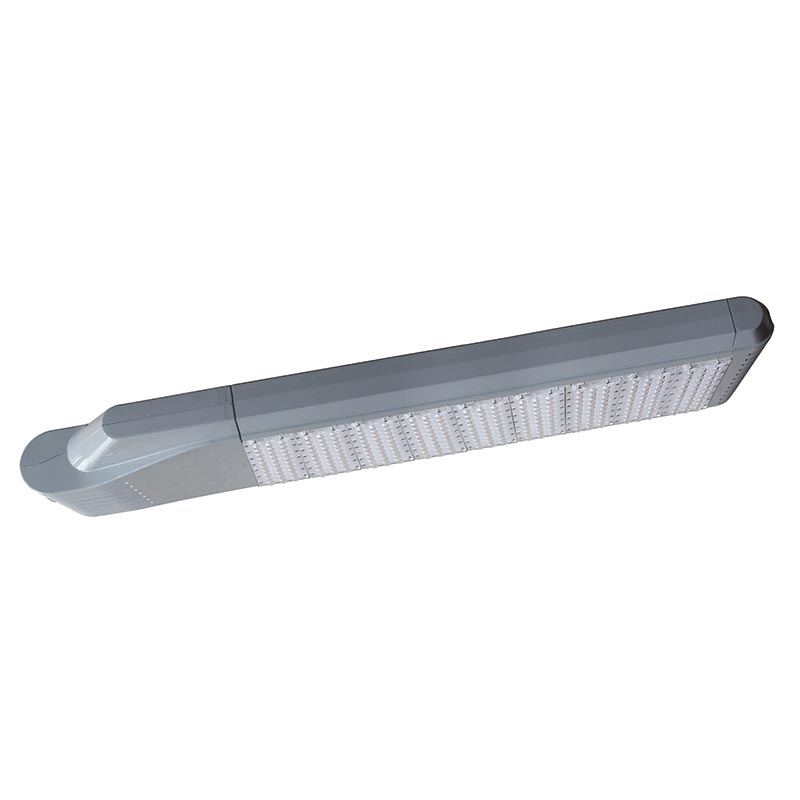

PRODUCT DISPLAY


SM-06 LED Street light

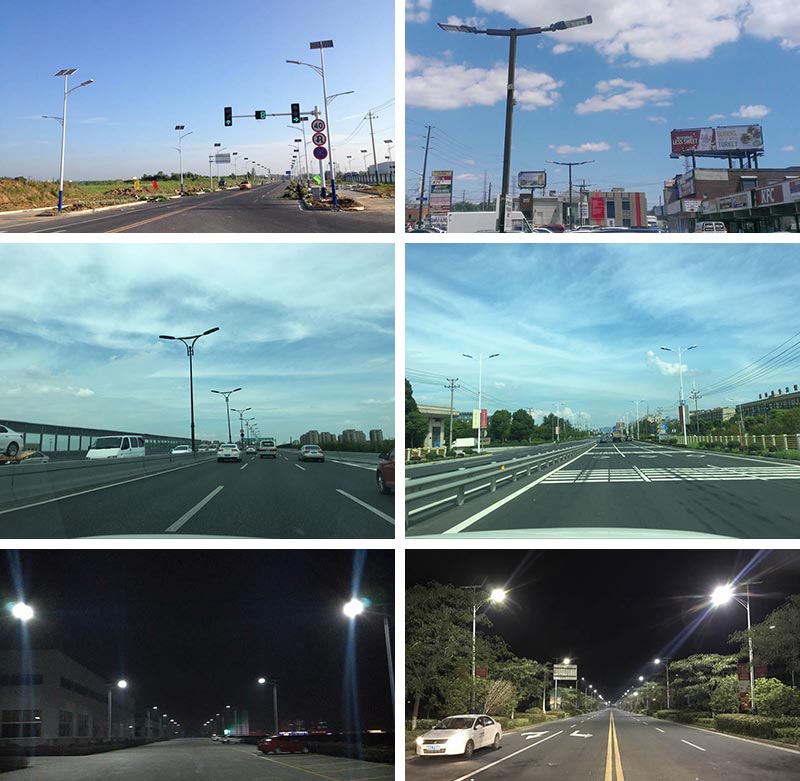

APPLICATION


SM-06 LED Street light Applications
